Advanced Yield Line Analysis Software for Reinforced Concrete Slabs

Analyze any slab geometry, support conditions and loading arrangements

YieldLine program

Analyze :

  • Any quadrilateral shape
  • Supported on two, three or four sides
  • UDL, Line loads and Point loads
  • Opening in a slab
  • Equal/unequal reinforcement in two directions
  • Any support type, simply supported, partial or fully fixed
  • Load distribution on supports
  • Detailed result log for all yieldlines considered
  • Preview slab geometry before running analysis

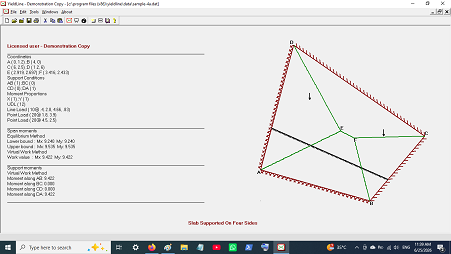

slab supported on four sides

Commercial and Academic Licenses available NOW !

Download Working Demo

Supports: Windows 7/8/10/11

Windows logo

A powerful structural engineering program, YieldLine v4.1 is based on Yield Line Theory for the analysis and design of quadrilateral orthotropic reinforced concrete slabs supported on two, three, or four sides under a wide range of support and loading arrangements.
